Shows the past and present temperatures on one label.
- This label combines the basic, reusable reversible Thermo Sheet which changes color at a specific temperature and reverts to its original color when cooled, with an irreversible temperature indicating element (Thermo Label ) in the center. This useful disc-type label shows the past temperature by the element and the present temperature by the changing color of the base.

The temperature indicating materials of irreversible type may change the color during the transportation, depending upon season, destination and handling.


Example
A-65

TB-65

O

Number	Temp. Indicating Element (Irreversible)		Base			Packaging Unit (Pack)
	Color Change Temp. degreeC	Original Color -> Signla Color	Size	Color Change Temp. Low Temp. Color -> High Temp. Color	Size

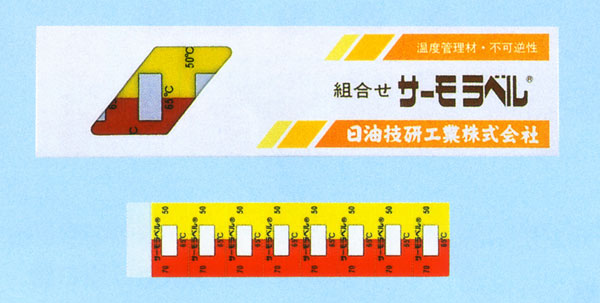

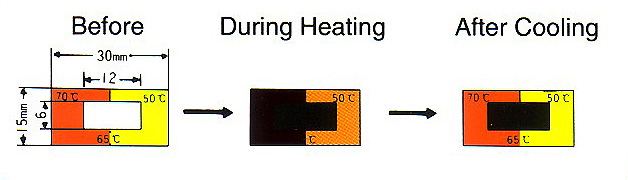

A-65	65	White -> Black	6 x 12 mm	70 degree C Red <-> Dark Brownish Purple 50 degree C Yellow <-> Yellowish Orange *Temp. distribution Left : 70 degree C Right : 50 degree C	15 x 30 mm	80 pcs (10 sheets)
A-70	70	White -> Reddish Orange
A-75	75	White -> Dark Red
A-80	80	White -> Blue
A-85	85	White -> Dark Blue
A-90	90	White -> Red

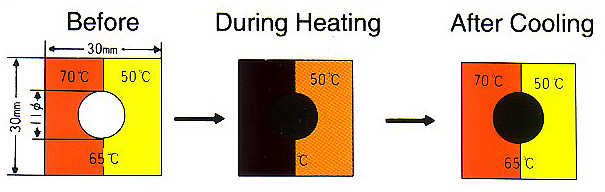

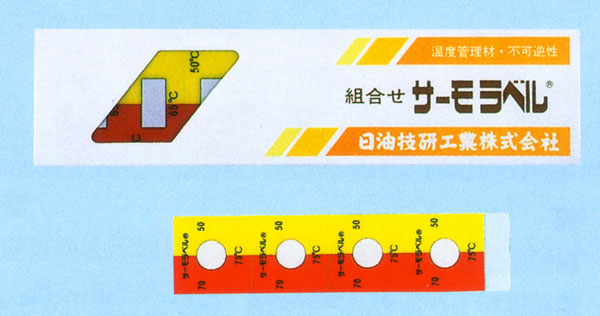

TB-65	65	White -> Black	11 mm phi		30 x 30 mm	40 pcs (10 sheets)
TB-70	70	White -> Reddish Orange
TB-75	75	White -> Dark Red
TB-80	80	White -> Blue
TB-85	85	White -> Dark Blue
TB-90	90	White -> Red

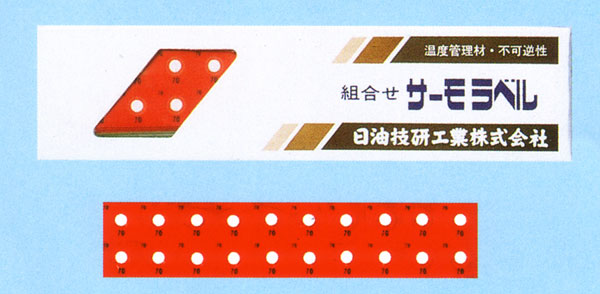

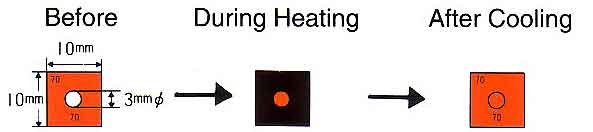

O-70	70	White -> Reddish Orange	3 mm phi	70 degree C Red <-> Dark Brownish Purple	10 x 10 mm	80 pcs (4 sheets)
O-80	80	White -> Blue
O-90	90	White -> Red
O-100	100	White -> Dark Red

* Applications :
Electric power equipment, mechanical equipment, ships, vehicles, heating apparatus, etc.


Combined THERMO LABEL

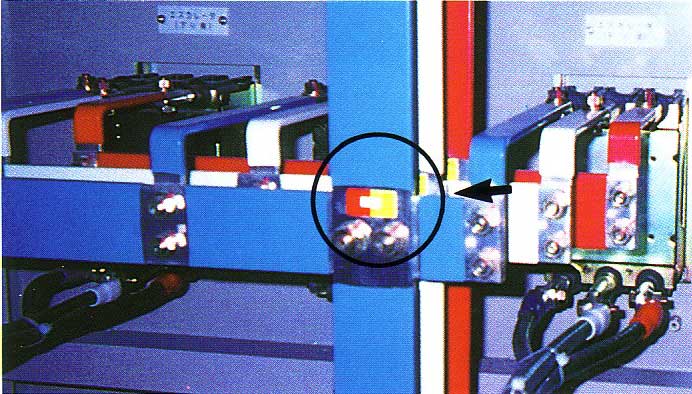

Heat evolution checking for connecting portion of indoor transformer equipments.
