Temperature / UV / Condensation Indicating Material
Temperature at Sight by Change of Color

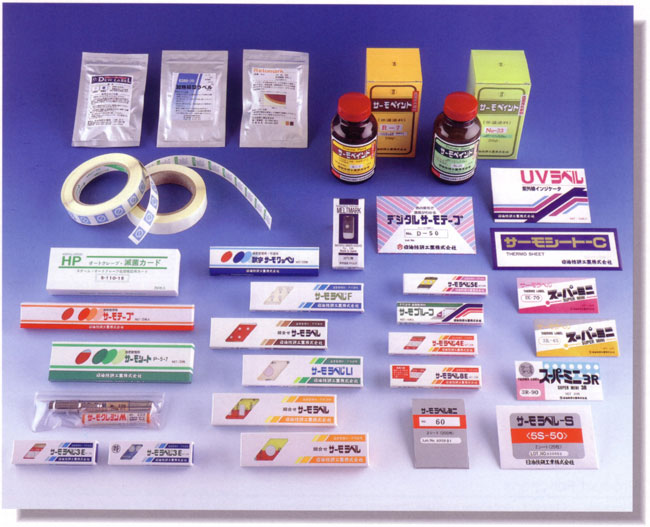

The temperature indicating material, "Thermo Indicator", gives, at sight, present and past temperatures varying form -20 degree C to 1,010 degree C by only affixing, painting or drawing it on the products. "Thermo Indicator" newly developped with high technology, is used in various fields for such applications as quality control, process control, maintenance and security control, technology control, power saving and home appliances control.


 Attention!!

While the following products contain the
mercury compounds, these may not be the object of the RoHS directive when these are used themselvs without applying to products such as household appliances which fall in range of  the objects regulated with the
RoHS directive.

Product names:
Temperature Indicators (Reversible only)
Thermo Tape TR40, 50, 60, 70
Thermo Sheet P-5, 7
  C
Numer Thermo Patch WR-40, 45, 50, 55, 60, 65, 70, Assortment
Combined Thermo Label A-65, 70, 75, 80, 85, 90
  TB-65, 70, 75, 80, 85, 90
  O-70, 80, 90, 100

Customized reversible temperature indicators conforming to the RoHS directive have been now availabe for 40, 45, 50, 55 and 60 degree C.  For details please contact us.


Precautions for Use
Please click the logo and read the page before your selection of our products.



Product Temperature
Range (°C)
Color Change Applications Features
Thermo Label - LI 40 - 250 Irreversible Adhere One point type
Thermo Label - F 50 - 125 Small version of one point type
Thermo Label - 3E 40 - 250 Three 10 ºC increments
Thermo Label - 4E 50 - 110 Four 5 ºC increments
Thermo Label - 5E 50 - 250 Five 5 - 10 ºC increments
Thermo Label - 8E 50 - 120 Eight 10 ºC increments (50 - 120 ºC)
Thermo Label Super Mini 1K 40 - 125 Extra small version of one point type
Thermo Label Super Mini 3K 40 - 150 Three 5-10 ºC increments - extra small version
Thermo Label Super Mini 3R Three 5-10 ºC increments - extra small circular version
Thermo Label Mini 50 - 125 One point
Thermo Label - 5S 50 - 115 Four 5 ºC increments
Thermo Tape 40 - 70 Reversible Present temperature - tape
Thermo Sheet P-57 50 - 70 Present temperature (50 ºC; 70 ºC +)
Thermo Sheet C Present temperature - five 5 ºC increments (50 - 70 ºC)
Number Thermo Patch 40 - 70 Heating temperature indicated as numerals
Combination Thermo Label A 50 - 90 Reversible & Irreversible Past/present temperature - rectangular
Combination Thermo Label TB Past/present temperature - circular
Combination Thermo Label O 70 - 100 Past/present temperature - small version
Digital Thermo Tape -20 - 100 Reversible Present temperature indicated in green
Medeshill Color -20 - 50 To be printed on labels, films, and so on.
Thermo Crayon - M 40 - 1,010 Irreversible Write Draw on surface to determine temperature
DEGMARK 55 - 150 Adhere Tasteful and low cost
Retomark 70 - 134
for 3 to 120 min.
Retort and boil sanitation
HEATING LABEL 70 - 100
for 3 to 60 min.
For dry and boil sanitation
UV Label --- UV - color change
Dew Label --- Condensation - Color change



Sanwa Tsusho Co., Ltd.
Applications
Example
