Features:

• Capsulated liquid crystal is specially printed on polyesther film.

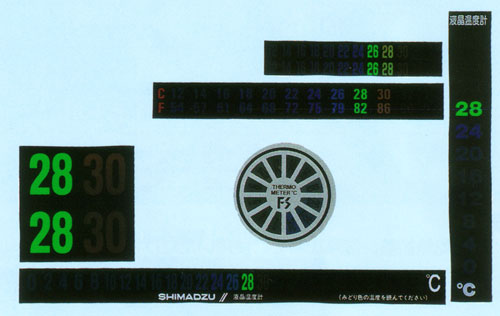

• Digital Thermo Tape will indicate temperature by changing color in numbers. Green number will tell you the temperature.
• The numbers will change the color in order of black, reddish brown, green to blue with temperature increase and in reverse order with temperature decrease.

This Thermo Tape uses liquid crystal to indicate the temperature in green figures. Indoor Use only.

Example

Number	Temp. Range oC	Temp. Pitch	Accuracy
D-M-20	-20 - 0	2oC	+/- 1.0 oC
D-M-6	-6 - 14		+/- 0.5 oC
D-06	6 - 34
D-16	16 - 36
D-38	38 - 58
D-50	50 - 100	5oC	+/- 2.0oC

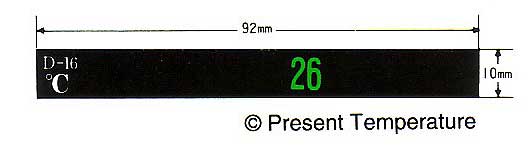

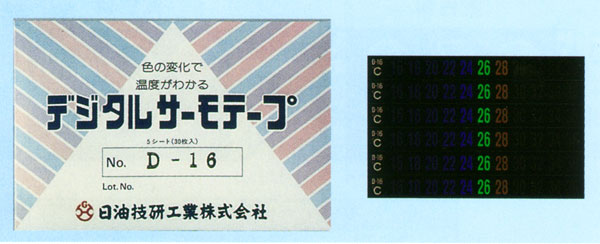

Tape size 10 x 92 mm, 6 pcs/sheet x 5 sheets

*Application : For checking the present temperature of freezers and refrigerators, room temperature, water temperature, body temperature, food, dies, etc. Also for checking heat generation of electric power equipment, mechanical equipment, medical apparatus, etc.

Precautions :

• Do not expose the products to direct sunshine or high humidity for long time, or the liquid crystals will be influenced by UV ray or moisture and the color will not change.
• The products have no resistance against acids or bases.
• Keep away from organic solvents.
• D-50 : If heated at 100 ºC for approx. 10 hours, the temperature indicating numbers may look white but this will not influence the performance. When the temperature decreases, two number may happen to change green simultaneously. In this case, the larger number in green indicates the current temperature.
• Service life : three years for indoor application generally

Data for Reference only

1.	Heat resistance	D-M20 to D-50	60 ºC x 1,000 hours (heated continuously at 60 ºC)
		D-50	120 ºC x 10 hours (heated continuously at 120 ºC)
			110 ºC x 30 hours (heated continuously at 110 ºC)
			100 ºC x 60 hours (heated continuously at 100 ºC)
2.	Water resistance	3 hours (submerged in water)
3.	Weather resistance	Hastening weather resistance test with weather meter
		D-M20 :	50 hours	D-M6 :	20 hours
		D-06 :	20 hours	D-16	20 hours
		D-38 :	50 hours	D-50 :	50 hours
4.	Humidity resistance	No irregularity at 70% RH or lower. Optional laminated process with the humidity penetration-proof film will improve the water, heat and weather resistance.
5.	Response time	Within 1 sec.

For easy checking of the temperature of everyday items. Indoor Use Only

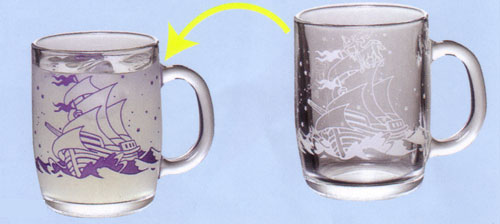

- The color appears below a specific temperature and disappears above that temperature. Printing on the base also appears or disappears.

Color Change Temp (oC)	From -20oC to 50 oC at 5oC intervals
Color disappearing type	Orange, pink, red, violet, deep blue, cobalt blue, greenish blue, green, brown or black will change to white.
Color appearing type	Red to Yellow Black to Red Violet to Pink
Accuracy	+/-2oC
Light Resistance	Care is required when using this temperature indicating material due to a deficiency in light resistance.
Heat resistance	80 oC

Application : Labels (for indicating suitable temperature for drinking or eating), medical treatment, clothing, china, glass, towels, telephone cards, advertisements, etc.
