Temperature Indicating Material

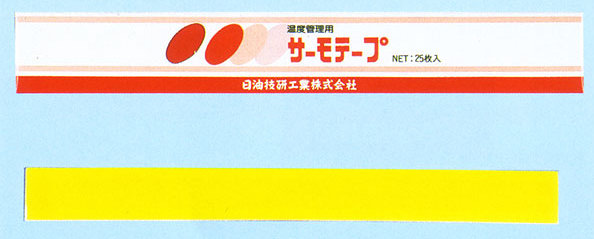

THERMO TAPE


Monitors the temperature of objects liable to be heated.
Thermo Tape has the advantage that it can be cut to any desired length.

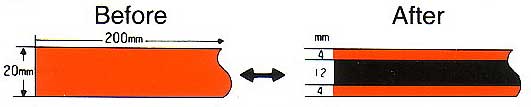

Example
Number Color Change
Temp (oC)		 Low Temp. Color <-> High Temp. Color Accuracy
TR-40 40 Reddish Yellow <-> Reddish Orange +/- 2 oC
TR-50 50 Yellow <-> Yellowish Orange
TR-60 60 Bright Yellowish Red <-> Dark Brownish Purple
TR-70 70 Red <-> Dark Brownish Purple
Tape size 20 x 200 mm, 25 pcs/pack
Please also see this.

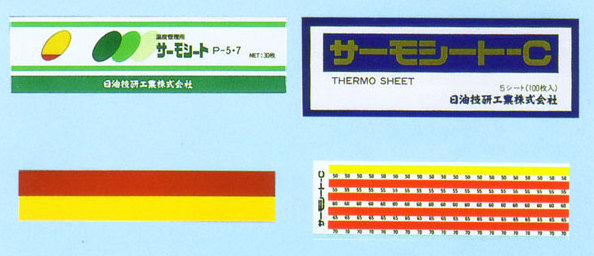

THERMO SHEET


Warning and dangerous temperatures can be seen at a glance simply by cutting and applying Thermo Sheet.

 Example

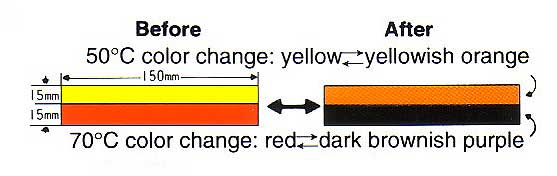

P-5·7

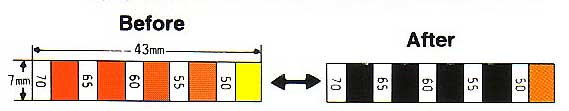

C
Number Color Change
Temp (oC)		 Packaging Unit Accuracy
P-5·7 50 - 70 30 x 150 mm, 30 pcs/pack +/- 2 oC
C 50 - 55 - 60 - 65 - 70 7 x 43 mm, 100 pcs/pack
The low and high temperature color changes are the same as for the Number Thermo Patch.
Please also see this.

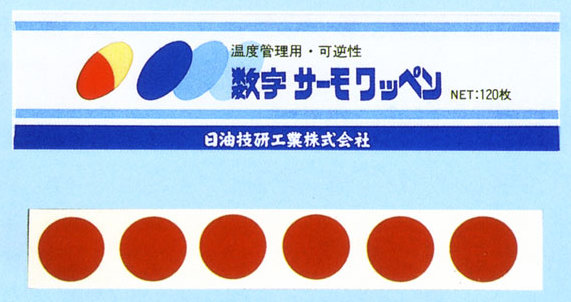

NUMBER THERMO PATCH


The suitable temperature or warning temperature is indicated in figures.

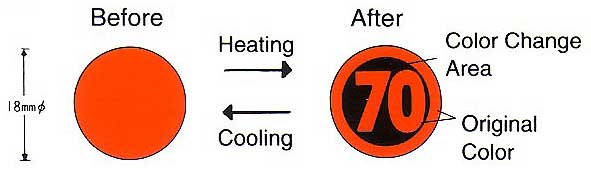

Example
Number Color Change
Temp (oC)		 Low Temp. Color <-> High Temp. Color Accuracy
WR-40 40 Reddish Yellow <-> Reddish Orange +/- 2 oC
WR-45 45 Yellowish Orange <-> Bright Yellowish Red
WR-50 50 Yellow <-> Yellowish Orange
WR-55 55 Yellowish Red <-> Dark Brownish Purple
WR-60 60 Bright Yellowish Red <-> Dark Brownish Purple
WR-65 65 Red<-> Dark Brownish Purple
WR-70 70 Red <-> Dark Brownish Purple
WR-Assortment 50 - 70
* WR-40 - 70 : 120 pcs/pack
* WR-Assortment : 50, 55, 60, 65, 70 oC/24 pcs each. Total 120 pcs./pack. Label size 18 mm diameter 120 pcs/pack
* Applications (THERMO TAPE, THERMO SHEET, NUMBER THERMO PATCH)
   Electric power equipment, mechanical equipment, ships, vehicles, heating apparatus, etc.
  Please also see this.

Resistance Data for Reference Only
Items Performance
Heat resistance Continuous heating at 90ºC for 1,000 hours with 20 x 30 mm test piece
Water resistance Submerged in water at normal temperature for one month
Oil resistance Submerged in oil at normal temperature for one month

Application :
