Temperature at Sight by Change of Color - Temperature Indicator

Temperature variations from 40 to 240 degree C are indicated by the changing color of the label.

1.	Thermo Label is an irreversible temperature indicating material which changes color distinctly on reaching a specific temperature and does not revert to its original color once it has undergone a color change.
2.	The temperature indicating elements utilize the melting point of specially refined stable material to give correct and highly precise temperature indications.
3.	The temperature indicating elements are sealed in film and resistant to water, oil, some chemical substances to some extent. (L1, F, 3E, 4E, 5E, 8E and Combined Type).
4.	The reverse side of Thermo Label is coated with heat-resistant adhesive. Simply peel off the backing and affix to the point where the temperature is to be measured.

The temperature indicating materials of irreversible type may change the color during the transportation, depending upon season, destination and handling.

*Applications (LI, F, 3E, 4E, 5E, 8E)
Indoor and outdoor electric power equipment, mechanical equipment, ships, vehicles, heating apparatus, etc.

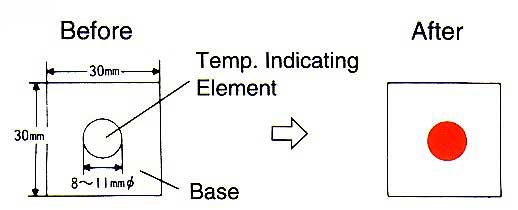

LI	This one-point indicating label is for outdoor use.
Example

Element size :	11 mm diameter for LI -40-105 and 8 mm diameter for LI -110-250

Number	Original Color -> Signal Color	Color Change Temp (degreeC)	Accuracy
LI-40	White -> Blue	40	+/-2 degree C
LI-45	White -> Black	45
LI-50	White -> Red	50
LI-55	White -> Dark Blue	55
LI-60	White -> Green	60
LI-65	White -> Black	65
LI-70	White -> Reddish orange	70
LI-75	White -> Dark Red	75
LI-80	White -> Blue	80
LI-85	White -> Dark Blue	85
LI-90	White -> Red	90
LI-95	White -> Black	95
LI-100	White -> Dark Red	100
LI-105	White -> Green	105
LI-110	White -> Dark Blue	110
LI-115	White -> Reddish Orange	115
LI-120	White -> Blue	120
LI-125	White -> Black	125
LI-130		130
LI-140		140
LI-150		150
LI-160		160
LI-170	Yellowish Gray -> Black	170
LI-180	Pale Yellow -> Black	180	+/- 3 degree C
LI-190		190
LI-200		200
LI-210		210
LI-220		220
LI-230		230
LI-240		240
LI-250		250

Label size 30 mm x 30 mm, 40 pcs./pack
Thermo Labels with a color change temperature of over 130 degree C should not be used for more than 1 hour.

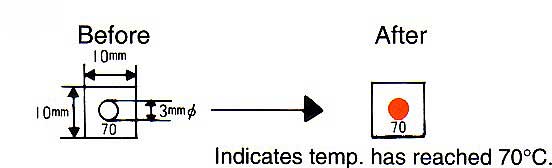

F	This compact size Thermo Label is suitable for use both indoors and outdoors.
Example

Number	Color Change Temp (degree C)	Color Change	Accuracy
F-50	50	White -> Red	+/-2 degree C
F-55	55	White -> Dark Blue
F-60	60	White -> Green
F-65	65	White -> Black
F-70	70	White -> Reddish Orange
F-75	75	White -> Dark Red
F-80	80	White -> Blue
F-85	85	White -> Dark Blue
F-90	90	White -> Red
F-95	95	White -> Black
F-100	100	White -> Dark Red
F-105	105	White -> Green
F-110	110	White -> Dark Blue
F-115	115	White -> Reddish Orange
F-120	120	White -> Blue
F-125	125	White -> Black

Label size 10 mm x 10 mm, 80 pcs./pack

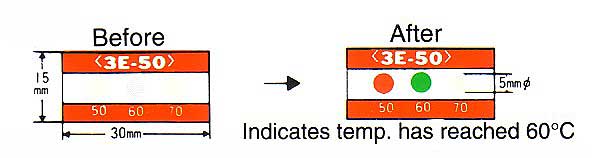

3E	Each label shows 3 temperature stages at 10 degree C intervals.
Example

Number	Temperature Combinations degreeC	Accuracy
3E-40	40 - 50 - 60	+/-2 degree C
3E-45	45 - 55 - 65
3E-50	50 - 60 - 70
3E-55	55 - 65 - 75
3E-60	60 - 70 - 75
3E-65	65 - 75 - 85
3E-70	70 - 80 - 90
3E-75	75 - 85 - 95
3E-80	80 - 90 - 100
3E-85	85 - 95 - 105
3E-90	90 - 100 - 110
3E-95	95 - 105 - 115
3E-100	100 - 110 - 120
3E-105	105 - 115 - 125
3E-110	110 - 120 - 130
3E-120	120 - 130 - 140
3E-130	130 - 140 - 150
3E-140	140 - 150 - 160
3E-150	150 - 160 - 170
3E-160	160 - 170 - 180	+/-2 - 3 degree C
3E-170	170 - 180 - 190	+/-2 - 3 degree C
3E-180	180 - 190 - 200	+/-3 degree C
3E-190	190 - 200 - 210
3E-200	200 - 210 - 220
3E-210	210 - 220 - 230
3E-220	220 - 230 - 240
3E-230	230 - 240 - 250

Label size 15 mm x 30 mm, 20 pcs./pack
Color changes are the same as for LI

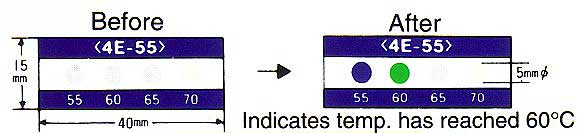

4E	Each label shows 4 temperature stages at 5 degree C intervals.
Example

Number	Temperature Combinations degreeC	Accuracy
4E-50	50 - 55 - 60 - 65	+/-2 degree C
4E-55	55 - 60 - 65 - 70
4E-60	60 - 65 - 70 - 75
4E-65	65 - 70 - 75 - 80
4E-70	70 -75 - 80 - 85
4E-75	75 - 80 - 85 - 90
4E-80	80 - 85 - 90 - 95
4E-85	85 - 90 - 95 - 100
4E-90	90 - 95 - 100 - 105
4E-95	95 - 100 - 105 - 110

Label size 15 mm x 40 mm, 20 pcs./pack
Color changes are the same as for LI

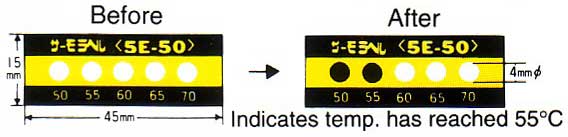

5E Each label shows 5 temperature stages.

Example

Number	Temperature Combinations (degree C)	Accuracy	Original Color -> Signal Color
5E-50	50 - 55 - 60 - 65 - 70	+/-2 degree C	White -> Black
5E-75	75 - 80 - 85 - 90 - 95
5E-100	100 - 105 - 110 - 115 - 120
5E-125	125 - 130 - 140 - 150 - 160
5E-170	170 - 180 - 190 - 200 - 210	+/-2 - 3 degree C	Pale Yellow -> Black
5E-210	210 - 220 - 230 - 240 - 250	+/-3 degree C	Pale Yellow -> Black

Label size 15 x 43 mm (5E-50 to 100), 17 x 45 mm (5E-125 to 210) 20 pcs./pack

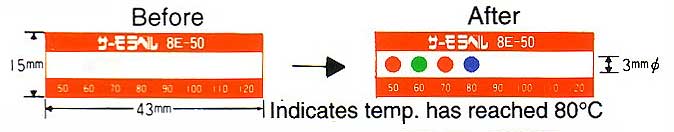

8E Shows the temparature from 50 - 120 degree C on one label.

Example

Number	Temperature Combinations (degree C)	Accuracy
8E-50	50 - 60 - 70 - 80 - 90 - 100 - 110 - 120	+/-2 degree C

Label size 15 mm x 43 mm, 20 pcs./pack
Color changes are the same as for LI.
