Temperature Indicating Material

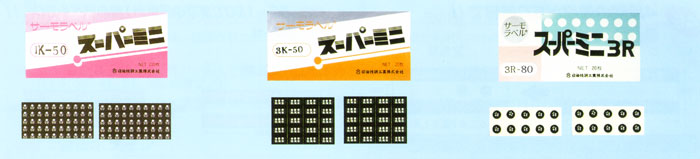

THERMO LABEL SUPER MINI


Applications (Supermini)

For the maintenance and prevention of accidents involving electronic equipment, distributing board relays, etc.

The temperature indicating materials of irreversible type may change the color during the transportation, depending upon season, destination and handling.

1K        Only 5 mm x 5 mm, this super-mini size label is ideal for monitoring the temperature of small parts. Indoor Use Only

Example



Number Color Change Temp (degree C) Color Change Accuracy Number Color Change Temp (degree C) Color Change Accuracy
1K-40 40 White -> Black +/-2 degree C 1K-85 85 White -> Black +/-2 degree C
1K-45 45 1K-90 90
1K-50 50 1K-95 95
1K-55 55 1K-100 100
1K-60 60 1K-105 105
1K-65 65 1K-110 110
1K-70 70 1K-115 115
1K-75 75 1K-120 120
1K-80 80 1K-125 125
Label size 5 mm x 5 mm, 200 pcs/pack

3K

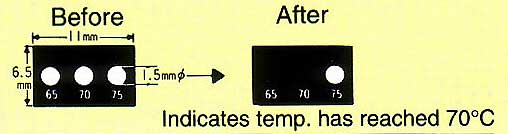

With three 1.5 mm diameter elements and a super-mini base measuring 6.5 x 11 mm, this label is highly suited to monitoring the temperature of extremely small parts.Indoor Use Only

Example



Number Temperature Combinations degreeC Accuracy Color Change
3K-40 40 - 45 - 50 +/-2 degree C White -> Black
3K-50 50 - 55 - 60
3K-65 65 - 70 - 75
3K-80 80 - 85 - 90
3K-95 95 - 100 - 105
3K-110 110 - 115 - 120
3K-130 130 - 140 - 150
Label size 6.5 mm x 11 mm, 20 pcs/pack

3R

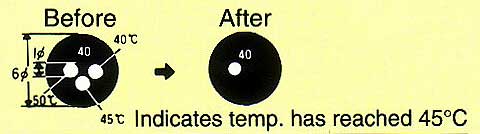

With three 1 mm diameter elements and a 6 mm diameter super-mini base, this label is highly suited for monitoring the temperature of extremely small parts. With the numeral as the starting point, the color changes in a clockwise direction from low to high temperature.Indoor Use Only

Example



Number Temperature Combinations degreeC Accuracy Color Change
3R-40 40 - 45 - 50 +/-2 degree C White -> Black
3R-50 50 - 55 - 60
3R-60 60 - 65 - 70
3R-70 70 - 75 - 80
3R-80 80 - 85 - 90
3R-90 90 - 95 - 100
3R-100 100 - 105 - 110
3R-110 110 - 115 - 120
3R-120 120 - 125 - 130
3R-130 130 - 140 - 150
Label diameter 6 mm, 20 pcs/pack
Back

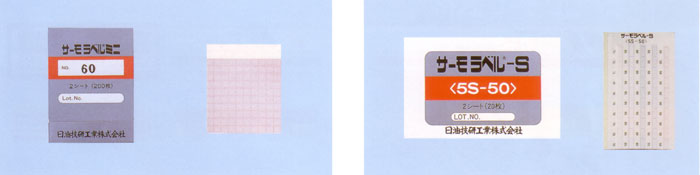

THERMO LABEL MINI


The temperature indicating materials of irreversible type may change the color during the transportation, depending upon season, destination and handling.

MINI     Ideal for monitoring the temperature of small parts.Indoor Use Only
Example

Number Color Change Temp (degree C) Accuracy Original Color -> Signal Color
No. 50 50 +/-2 degree C White -> Red
No. 55 55
No. 60 60
No. 65 65
No. 70 70
No. 75 75
No. 80 80
No. 85 85
No. 90 90
No. 95 95
No. 100 100
No. 105 105
No. 110 110
No. 115 115
No. 120 120
No. 125 125
Label size 5 mm x 5 mm, 200 pcs./pack

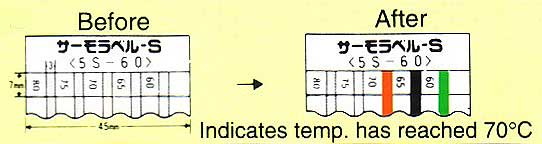

5S               Each label shows 5 temperature stages at 5 degreeC intervals.Indoor Use Only
Example


Number Temperature Combinations (degree C) Accuracy
5S-50 50 - 55 - 60 - 65 - 70 +/-2 degree C
5S-55 55 - 60 - 65 - 70 - 75
5S-60 60 - 65 - 70 - 75 - 80
5S-65 65 - 70 - 75 - 80 - 85
5S-70 70 - 75 - 80 - 85 - 90
5S-75 75 - 80 - 85 - 90 - 95
5S-80 80 - 85 - 90 - 95 - 100
5S-85 85 - 90 - 95 - 100 - 105
5S-90 90 - 95 - 100 - 105 - 110
5S-95 95 - 100 - 105 - 110 - 115
10 pcs. /sheet x 2 sheet, 20 pcs./pack
Color changes are the same as for LI
.
