  MV-75HG

  • High flow rate capacity with 2-channels
  • UL certified model also available

Electromagnetic Driven



Specifications


Model MV-75HG
Maximum flow rate L/min 5.0×2 minimum
Maximum discharge kPa (mmHg) 17.3 (130) minimum
Maximum vacuum kPa (mmHg) - 13.3 (- 100)
Voltage V AC100, 115, 220 or 240
Current A 0.25
Insulation class A
Ambient temperature °C 0 - 40
Gas contact material CR/PF
Connection Ø6 hose end
Weight kg 0.85
Dimensions H×L×W 128×70×47

NB: The specifications are subject to change without a prior notice.

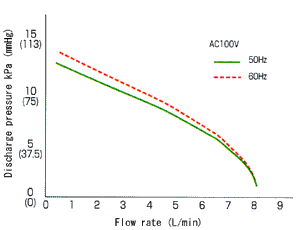

Characteristic Curve

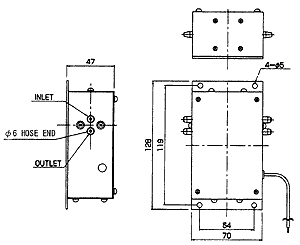

Dimensions (mm)

image image
