- Higher efficiency and precision than the filtration with conventional SUS
powder filters.
- Uniform fiber diameter of 1 µm. Minimized deviation in particle size.
- Only 50 µm thickness. Minuscule inner volume.
- Fibers connected at multi-points providing sufficient robustness in the thin configuration.
- Faster filtration with 90 % void. Lower fluid resistance. Reduced clogging. Longer service life.
- For small particles down to 0.1 µm diameter.
- Flexible. Possible to be bent.
- Suitable for polymer filtration and supercritical fluid chromatography (SFC).
- New application: Electronic parts
The highest porosity than ever!!

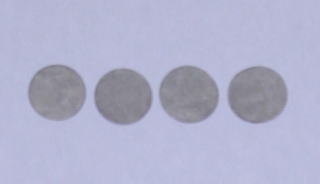

Sintered SUS filter as an electronic part utilizing SUS fibers. the filter
(shown above) features O.D. 10 mm and void ratio 80 % as an example.
Features
Higher efficiency and precision than the filtration with conventional SUS powder filters.
Uniform fiber diameter of 1 µm. Minimized deviation in particle size.
Only 50 µm thickness. Minuscule inner volume.
Fibers connected at multi-points providing sufficient robustness in the thin configuration.
Faster filtration with 90 % void. Lower fluid resistance. Reduced clogging. Longer service life.
For small particles down to 0.1 µm diameter.
Flexible. Possible to be bent.
Suitable for polymer filtration and supercritical fluid chromatography (SFC).
