  Details  Dimensions

Micro Pump OEM Modules

Typical Applications

Typical Applications Typical Applications Typical Applications

Accuracy & Reproducibility

Pump : HS 100PZ102
Samples : Degassed pure water at 24°C
Driver : Unipolar driver of 350 mA, half step, and 1,600 pps

Accuracy (CV):

199.52 µL : 0.155 %
399.03 µL : 0.059 %
598.55 µL : 0.064 %
798.06 µL : 0.068 %
997.58 µL : 0.035 %

Stability (at 249.40 µL setting):

CV mean
Initial: 0.095 % 241.37 µL
After 3,000,000 full strokes: 0.096 % 241.30 µL

  Dimensions (mm)

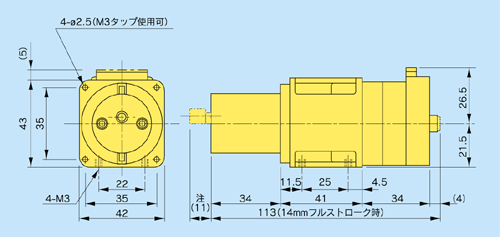

1 Port: HS003, HS011, HS024, HS053 & HS100

1 Port: HS003, HS011, HS024, HS053 & HS100

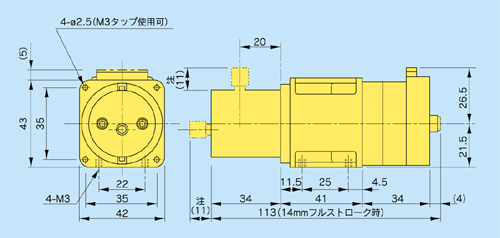

2 Ports: HS024 & HS053

2 Ports: HS024 & HS053

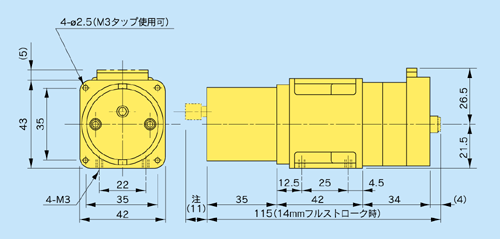

1 Port: HS210

1 Port: HS210

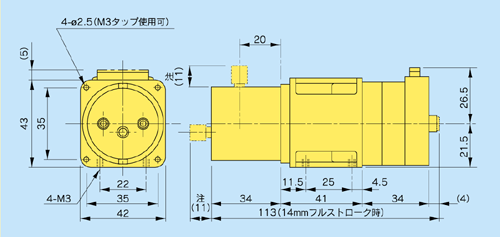

2 Ports: HS100

2 Ports: HS100

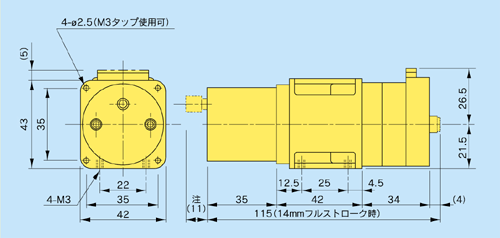

1 Port: HS560

1 Port: HS560

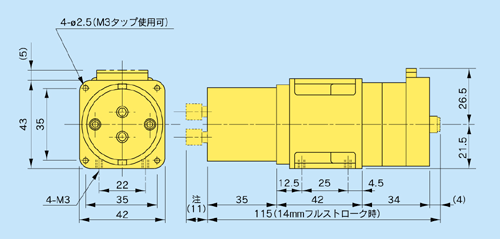

2 Ports: HS210

2 Ports: HS210

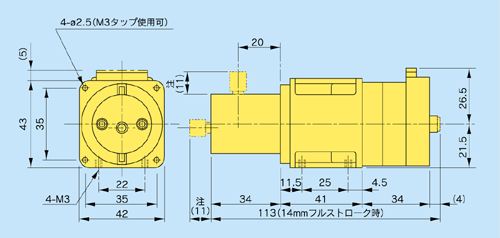

2 Ports: HS003 & HS011

2 Ports: HS003 & HS011

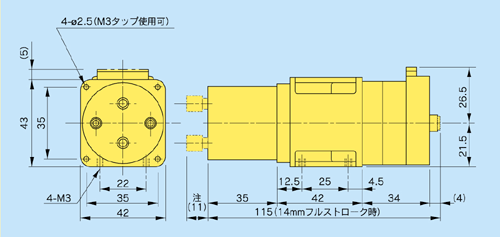

2 Ports: HS560

2 Ports: HS560

NB: All the joints shown below are for φ2 mm OD tubing.
For φ3 mm OD tubing, the length will be 10 mm.
