uf-6000-2 Series / uf-6000-F2 Series - Specifications
|
|
|
uf-Series
|
uf-6000-2 Series for Column Packing
| Model |
6010SSP2 |
6020SSP2 |
| General Application |
Column-packing |
| Feed Method |
Linear-cam, dual plunger |
| Mode |
Constant flow rate and constant pressure flow |
| Flow rate mL/min |
0.01 - 9.99 ,0.01 step |
0.1 - 20.0 ,0.1 step |
| Accuracy |
±2% (0.3 mL/min - ) |
| Reproducibility |
1% or less (1 mL/min) |
| Volume / Stroke (µl) |
63.3 |
135 |
| Max. Output Pressure (MPa) |
49.5, 0.5 step |

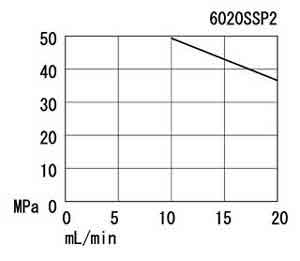

49.5, 0.5 step (Figure below) |
| Liquid Contact Parts |
SUS316, PEEK, Sapphire, Ruby, Teflon, ETFE |
| Inner Cleaning of Plunger Seal |
Available |
| Input/Output |
Through DC voltage, external input of flow rate and pressure settings, Pump RUN/STOP input, Pressure limiter reset input, Pressure monitor output, Pump RUN output, Pressure limiter output |
| Dimensions (mm/in.) |
140(W)×170(H)×370(D) / 5.6(W)×6.7(H)×14.6(D) |
| Weight (Kg,lb) |
8 , 17.7 |
| Power Supply |
AC 100, 120, 220, 240V, 50/60 Hz, 2A |
| Ambient Temperature |
4 - 35°C(without dew condensation) |
|
|
|
|
uf-6000-2 Series for Column Packing
| Model |
6010SZ2 |
6010PS2 |
6020SZ2 |
6020PS2 |
6050SZ2 |
6050PS2 |
| General Application |
Analytical & High Pressure preparative works |
High pressure preparative works |
| Feed Method |
Linear-cam, dual plunger |
| Mode |
Constant flow rate and constant pressure flow |
| Flow rate mL/min |
0.01 - 9.99, 0.01 step |
0.1 - 20.0, 0.1 step |
0.1 - 50.0, 0.1 step |
| Accuracy |
±2 % (0.3ml/min - ) |
±3 % |
| Reproducibility |
0.2% or less (1mL/min) |
1% or less (10 mL/min) |
| Volume / Stroke (µl) |
63.3 |
135 |
308 |
| Max. Output Pressure (MPa) |

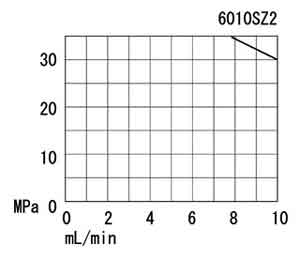

35 (Figure below) |
20 |
35 |
20 |

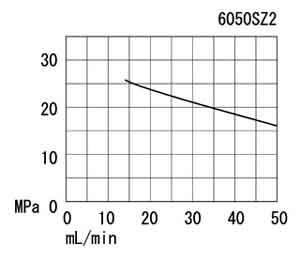

25 (Figure below) |

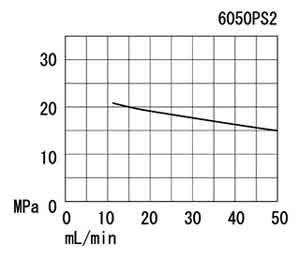

20 (Figure below) |
| Liquid Contact Parts |
NB 1 |
NB 2 |
NB 1 |
NB 2 |
NB 1 |
NB 2 |
| Inner Cleaning of Plunger Seal |
Available |
| Input/Output |
Through DC voltage, external input of flow rate and pressure settings,
Pump RUN/STOP input, Pressure limiter reset input, Pressure monitor output,
Pump RUN output, Pressure limiter output |
| Dimensions (mm/in.) |
140 (W)×170 (H)×370 (D)/ 5.6(W)×6.7(H)×14.6(D) |
| Weight (Kg,lb) |
8 , 17.7 |
| Power Supply |
AC 100, 120, 220, 240V, 50/60 Hz, 2A |
| Ambient Temperature |
4 - 35°C(without dew condensation) |
|
| Model |
6100SZ2 |
6100PS2 |
6150SZ2 |
6150PS2 |
6200SZ2 |
6200PS2 |
| General Application |
High pressure preparative works |
| Feed Method |
Linear-cam, dual plunger |
| Mode |
Constant flow rate and constant pressure flow |
| Flow rate mL/min |
0.1 - 99.9, 0.1 step |
1 - 150, 1 step |
1 - 200, 1 step |
| Accuracy |
±3 % |
| Reproducibility |
1% or less (10 mL/min) |
| Volume / Stroke (µl) |
570 |
| Max. Output Pressure (MPa) |

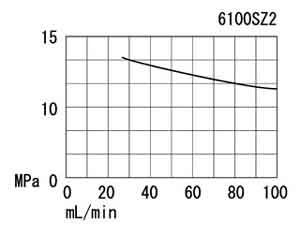

12 (Figure below) |
9.5 (Figure below) |

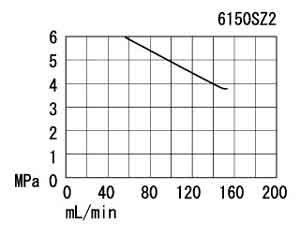

6 (Figure below) |

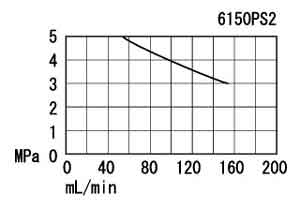

4.8 (Figure below) |

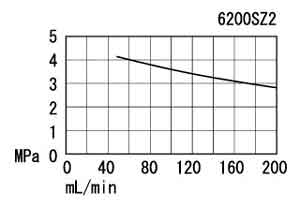

4 (Figure below) |

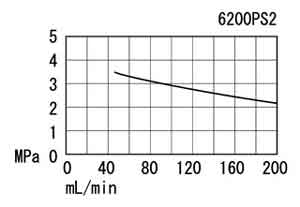

3.2 (Figure below) |
| Liquid Contact Parts |
NB 1 |
NB 2 |
NB 1 |
NB 2 |
NB 1 |
NB 2 |
| Inner Cleaning of Plunger Seal |
Available |
| Input/Output |
Through DC voltage, external input of flow rate and pressure settings, Pump RUN/STOP input, Pressure limiter reset input, Pressure monitor output, Pump RUN output, Pressure limiter output |
| Dimensions (mm/in.) |
140 (W)×170 (H)×370 (D)/ 5.6(W)×6.7(H)×14.6(D) |
| Weight (Kg,lb) |
8 , 17.7 |
| Power Supply |
AC 100, 120, 220, 240V, 50/60 Hz, 2A |
| Ambient Temperature |
4 - 35°C(without dew condensation) |
NB 1： SUS316, Zirconia, PEEK, Sapphire, Ruby, Teflon, ETFE
NB 2： PEEK, Sapphire, Ruby, Teflon, ETFE
|
|
|
|
uf-6000-F2 Series
| Model |
6010FS2 |
6020FS2 |
6050FS2 |
6100FS2 |
6150FS2 |
6200FS2 |
| General Application |
Analytical & high pressure preparative works |
High pressure preparative works |
| Feed Method |
Linear-cam, dual plunger |
| Mode |
Constant flow rate and constant pressure flow |
| Flow rate mL/min |
0.01 - 9.99 ,0.01 step |
0.1 - 20.0 ,0.1 step |
0.1 - 50.0 ,0.1 step |
0.1 - 99.9 ,0.1 step |
1 - 150 ,1 step |
1 - 200 ,1 step |
| Accuracy |
±2 % (0.3 ml/min - ) |
±3 % |
| Reproducibility |
0.2% or less (1 mL/min) |
1% or less (10 mL/min) |
| Volume/Stroke (µl) |
63.3 |
135 |
308 |
570 |
| Max. Output Pressure (MPa) |
10 |

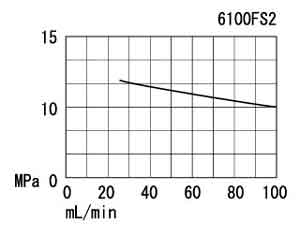

9.5(Figure below) |
4.8(Figure below) |

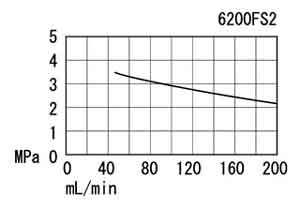

3.2(Figure below) |
| Liquid Contact Parts |
3F, Sapphire, Ruby, Teflon, ETFE |
| Inner Cleaning of Plunger Seal |
Available |
| Input/Output |
Through DC voltage, external input of flow rate and pressure settings,
Pump RUN/STOP input, Pressure limiter reset input, Pressure monitor output,
Pump RUN output, Pressure limiter output |
| Dimensions (mm/in.) |
140(W)×170(H)×370(D)/ 5.6(W)×6.7(H)×14.6(D) |
| Weight (Kg,lb) |
8 , 17.7 |
| Power Supply |
AC 100, 120, 220, 240V, 50/60 Hz, 2A |
| Ambient Temperature |
4 - 35°C(without dew condensation) |
|
|
|
|
|
|
|
