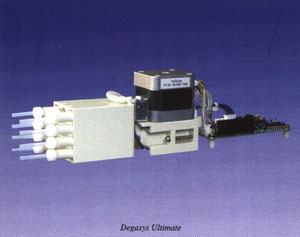

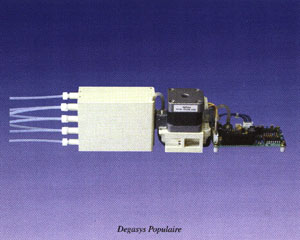

Degasys Ultimate & Degasys Populaire

Both Degasys Ultimate and Degasys Populaire are available in OEM modules to build into the pump systems as well as stand-alone models.

For convenience of incorporating into the pump system, the OEM modules can be of a vertical-type like the stand-alone models or of a horizontal-type. Major components such as vacuum pumps, independent vacuum chambers for respective channels and print circuit boards can be separately located.

Dimensions W×H×D�imm�j	1-4CH		5-8CH
	Ultimate	Populaire	Ultimate	Populaire

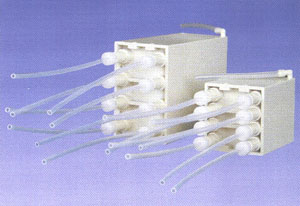

Degassing Module	43×45×58	43×6893	43×90×58	43×136×93

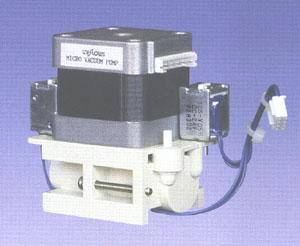

Vacuum Pump	43×68×70	43×68×70	43×68×70	43×68×70
Controller	45×20×120	45×20×120	45×20×120	45×20×120
Weight (kg)	0.6	0.7	0.7	1.0

Note :

1. Please specify the corresponding stand-alone model number in enquiring your OEM modules.
2. The width and height of degassing modules and vacuum pumps can be reversed. Other configurations are also available.
3. The above dimensions do not include tubing connectors and other projected parts.
4. Power supply : DC 24V 0.7A
5. These degassers are intended for general HPLC application. If the degasser is to be used with highly corrosive chemicals, please inquire us of the compatibility with the degasser before use. Please also visit this page.
