Descriptions

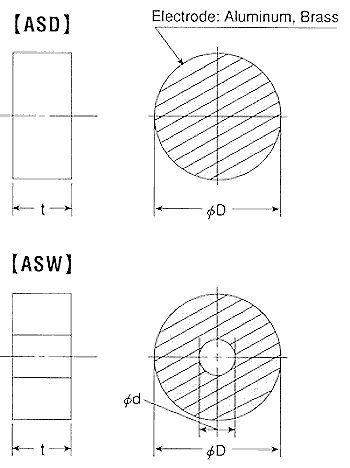

ASD and ASW are our proprietary resistors unparalleled in our country to
provide the circuits with a large current at a high voltage, developped
based on the most advanced technology inherent in TOKAI..
The ideal applications are shown right.
CHARACTERISTICS
| Item |
ASD, ASW Characteristics |
| Bulk density: |
2.65 |
| Specific heat: |
0.12 - 0.18 cal/g °C |
| Thermal conductivity: |
0.003cal/cm.sec.°C |
| Temperature Coefficient: |
-0.05 - -0.1 %/°C |
| Thermal expansion coefficient: |
4.0 - 7.0×10-6 |
| Max working temperature: |
250 °C |
| Allowable injection energy: |
300J/cc |
| Contact pressure: |
4.0 kg/cm² |
