KM-5 series KM-5EPA KM5-EVA
|
- Quiet. Max 40 dB without tubing
- Stable even in a long time use with cooling fan and thermal protector
|
AC Motor Driven
 |
Specifications
| Model |
KM-5EPA |
KM5-EVA |
| Maximum flow rate |
L/min |
5.0 minimum |
| Maximum discharge |
kPa (mmHg) |
50 (375) minimum |
--- |
| Maximum vacuum |
kPa (mmHg) |
--- |
- 30 (- 225) |
| Voltage |
V |
AC100, 120, 200 or 230 (50/60 Hz) |
| Current |
A |
0.5 |
| Rotation |
RPM |
2800 (50 Hz)/3400 (60 Hz) |
| Insulation class |
E |
| Ambient temperature |
°C |
0 - 40 |
| Gas contact material |
EPDM/PC/Bs |
| Connection |
Ø6 hose nipple |
| Weight |
kg |
1.0 |
| Dimensions |
H×L×W |
114×102×72 |
NB: The specifications are subject to change without a prior notice.
|

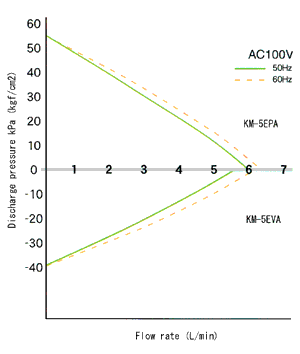

Characteristic Curve |
 |
|

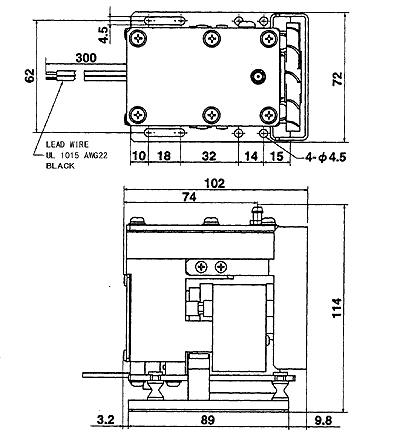

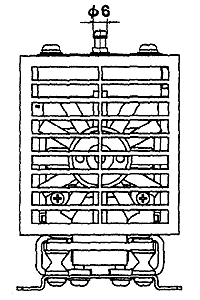

Dimensions (mm) |
 |
 |
|
|
|
|
|
