DM-707ST Series DM-707-ST-10 DM-707-ST-15 DM-707-ST-20
|
- Stainless steel pump head. High resistance against corrosive gas
|
AC Motor Driven
 |
Specifications
| Model |
DM-707-ST-10 |
DM-707-ST-15 |
DM-707-ST-20 |
| Maximum flow rate |
L/min |
6.0 minimum |
10.0 minimum |
13.0 minimum |
| Maximum discharge |
kPa (kgf/cm²) |
49 (0.5) minimum |
68 (0.7) minimum |
98 (1.0) minimum |
| Maximum vacuum |
kPa (mmHg) |
- 33.3 (- 250) |
- 40 (- 300) |
- 50 (- 375) |
| Voltage |
V |
AC100, 110, 200 or 220 (50/60 Hz) |
| Current |
A |
0.5 |
| Rotation |
RPM |
1200 (50 Hz)/1450 (60 Hz) |
| Insulation class |
E |
| Ambient temperature |
°C |
0 - 40 |
| Gas contact material |
PTFE/SUS316/SUS304 |
| Connection |
Rc 1/4 |
| Weight |
kg |
2.5 |
| Dimensions |
H×L×W |
154×149×100 |
NB: The specifications are subject to change without a prior notice.
|

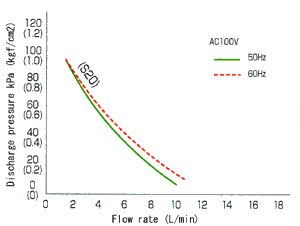

Characteristic Curve |
 |

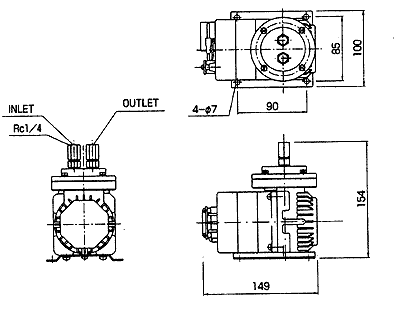

Dimensions (mm) |
 |
|
|
|
|
|
