Specifications
| Model |
GD-15TFF |
GD-15TTF |
| Maximum flow rate |
L/min |
15.0×2 minimum |
| Maximum discharge |
kPa (kgf/cm²) |
170 (1.73) minimum |
160 (1.63) minimum |
| Maximum vacuum |
kPa (mmHg) |
- 70 (- 525) |
- 65 (- 487) |
| Voltage |
V |
AC 200 (50/60 Hz) |
| Current |
A |
0.65 |
| Rotation |
RPM |
1200 (50 Hz)/1450 (60 Hz) |
| Insulation class |
E |
| Ambient temperature |
°C |
0 - 40 |
| Gas contact material |
PTFE/PPS/FKM |
PTFE/SUS316/SCS13 |
| Connection |
Rc 1/4 |
| Weight |
kg |
5.0 |
6.0 |

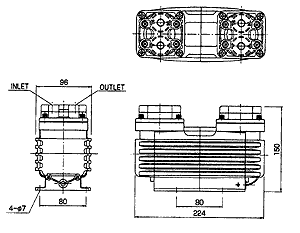

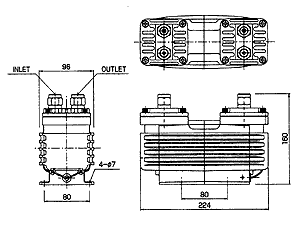

| Dimensions |
H×L×W |
150×224×96 |
NB: The specifications are subject to change without a prior notice.
