Specifications
| Model |
Model FX-7070ST |
| Maximum flow rate |
L/min |
70.0 x 2 minimum |
| Maximum discharge |
kPa (kgf/cm²) |
294 (3.0) minimum |
| Maximum vacuum |
kPa (mmHg) |
- 73 (- 550) |
| Voltage |
V |
AC100 or 200 |
| Current |
A |
3.4 (AC100 V)/1.8 (AC 200 V) |
| Rotation |
RPM |
1350 (50 Hz)/1610 (60 Hz) |
| Insulation class |
E |
| Ambient temperature |
°C |
0 - 40 |
| Gas contact material |
PTFE/SUS316/SUS304 |
| Connection |
Rc 1/4 |
| Weight |
kg |
14.0 |

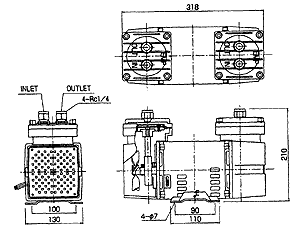

| Dimensions |
H×L×W |
210×318×130 |
NB: The specifications are subject to change without a prior notice.
