Specifications
| Model |
GS-3EA |
GS-5EA |
GS-6EA |
| Maximum flow rate |
L/min |
2.0 minimum |
5.0 minimum |
6.0 minimum |
| Maximum discharge |
kPa (kgf/cm²) |
29 (0.3) minimum |
78 (0.8) minimum |
98 (1.0) minimum |
| Maximum vacuum |
kPa (mmHg) |
- 26 (- 200) |
- 53 (- 400) |
- 60 (- 450) |
| Voltage |
V |
AC100 or 220 (50/60 Hz) |
| Current |
A |
0.3 |
| Rotation |
RPM |
1250 (50 Hz)/1450 (60 Hz) |
| Insulation class |
E |
| Ambient temperature |
°C |
0 - 40 |
| Gas contact material |
EPDM/PPS |
| Connection |
Rc 1/8 |
| Weight |
kg |
2.0 |

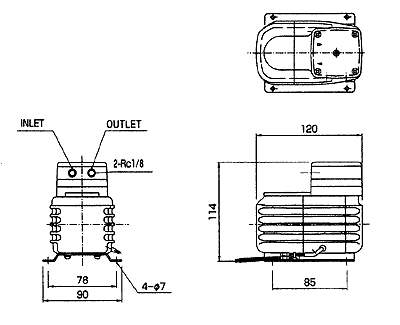

| Dimensions |
H×L×W |
114×120×90 |
NB: The specifications are subject to change without a prior notice.
